Refilling bench

Refilling bench

Refilling bench

M481 E00 000

Excellence in CBRN threat management

The refilling bench can simultaneously refill from 1 to 6 hydrogen (M266 E40 000 or M266 E40 001). Once the refillling bench has been switched on, the process is automatic.

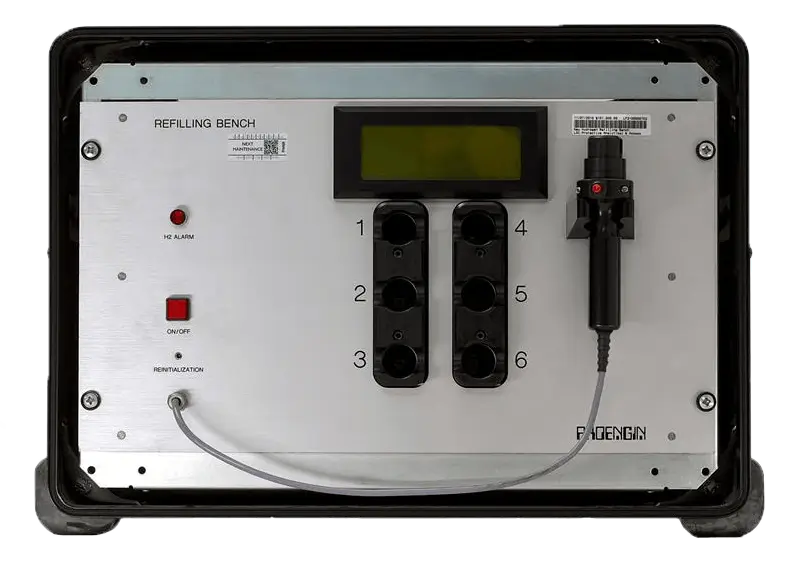

The front panel shows :

- An ON/OFF switch with indicator

- Six numbered locations for the hydrogen cylinders


A LCD display with hydrogen inpunt pressure, blocks temperature and status of each hydrogen cylinder.

A command key, integrated to the bench, allow the user to know the serial number, the number of refill and the operating status of each cylinder.

Typical refilling time for 6 cylinders : 1hour at 20°C

H2 supply pressure : 5 bar +/- 0,3 bar

Content

  • The refilling bench is supplied alone.

    Supply does not include gas bottle, connection devices to bottles or any other accessories.

Specifications

  • Operating temperature: Operating temperature : +12°C to +40°C
  • Powers supply: 220Vac 50/60Hz
  • Height: 450mm
  • Length: 500mm
  • Width: 270mm
  • Weight: 45kg
