AP4C-F

Marine & Critical Infrastructure Chemical Detection System

Excellence in CBRN threat management

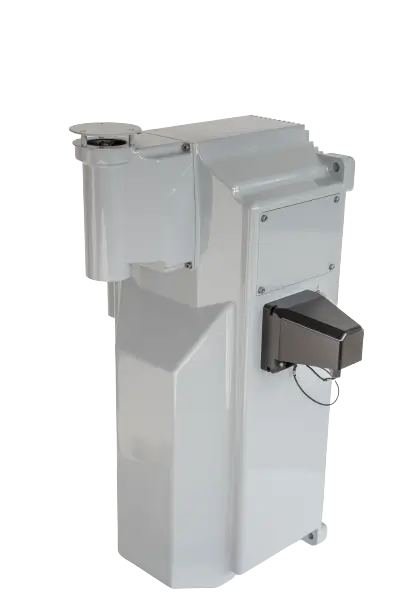

The AP4C-F is a chemical detector for gas and aerosol that provides continuous 24/7 monitoring for land or naval assets. It can detect a broad range of conventional and unconventional threats such as chemical warfare agents, toxic industrial chemicals, homemade terrorist mixtures and non-traditional agents (e.g Novichok).

Designed to withstand the harsh environment of naval operation, the AP4C-F is not sensitive to humidity and salt spray. Alarm and sampling is fully automatic and requires no action from the operator.

It is a combat proven system which has been tested and is in use with several navies, first responder fireboats, as well as on buildings and key infrastructure worldwide.





DT AP4CF 01 EN

Key features

  • No library / no filters
  • Quick response time
  • External & airtight sampling
  • Flexible and easy integration
  • Operates under harsh conditions (dust, humidity, temperature)
  • 24/7 continuous detection
  • Designed for naval use

Application

  • Land and naval platform
  • Capital ship
  • Fireboat
  • Strategic site
  • Critical infrastructure
  • Transportation hub
  • Mass transit

Detection

  • All nerve agents
  • All blister agents
  • All blood agents
  • All NTA such as Novickok
  • Choking agents
  • Numerous toxic industrials
  • PBA (such as fentanyl) and opioids

Content

  • Based on the initial requirement, PROENGIN offers various options of deliverable from full system integration to ready to mount kit.

Kit options

  • AP4C-F system: main detector with visualization and control module (VCM)

    AP4C-F detector : main detector without visualization and control module (VCM)

Accessories & services

  • For training, technical support or maintenance, contact us at contact@proengin.com
  • AP4C kit (M910 E00 003): handheld detector with gas and sampling capability for dismounted personel
  • Prepaid maintenance and extended warranty options availbale upon initial acquisition

Specifications

  • Technology: Flame spectrometry
  • Detection range: All nerve agents, All blister agents, All blood agents, All NTA such as Novickok, Choking agents, Numerous toxic industrials, PBA (such as fentanyl) and opioids
  • Operating temperature: -25°F to +122°F / -32°C to +50°C
  • Communication: RS485 interface
  • Data storage: Internal memory, 530 hours loop recording
  • Powers supply: 24 VDC at 72W (max)
  • Height: 606mm / 23.85''
  • Length: 342mm / 13.46''
  • Width: 400mm / 15.75''
  • Weight: 18,2kg / 40.12 lb
