AP4B Bio detector

AP4B Bio detector

AP4B (NEW)

Biological threats detector

Excellence in CBRN threat management

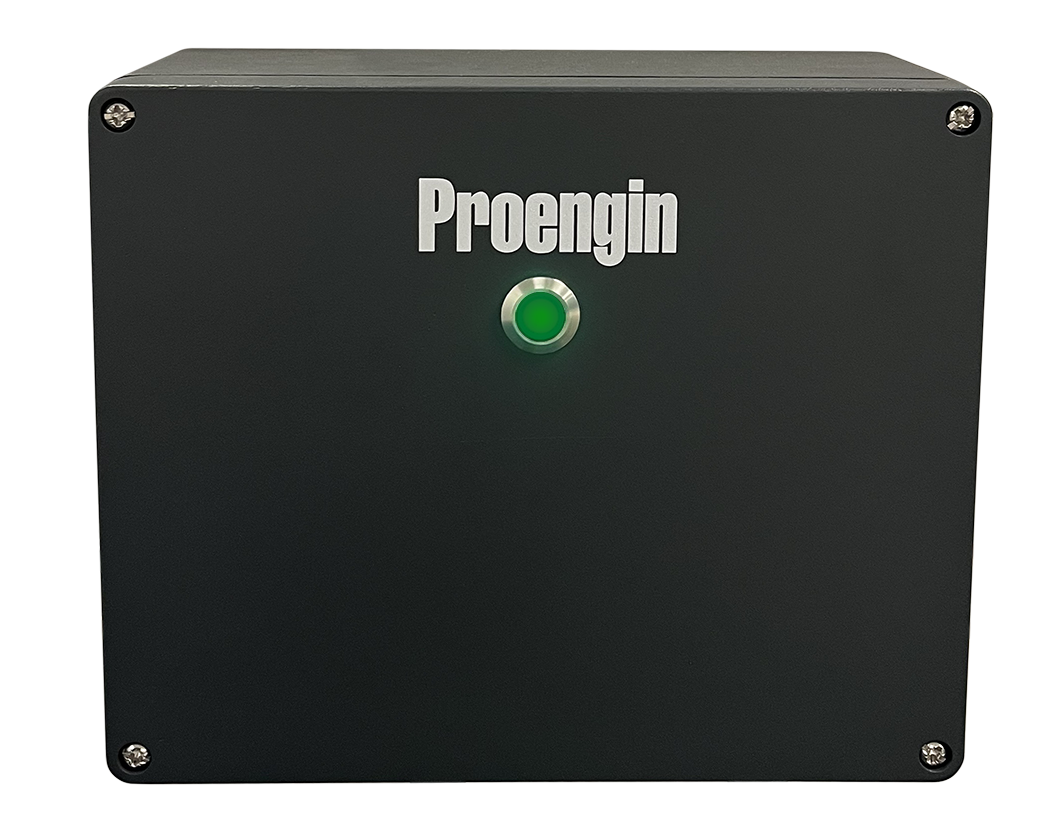

The AP4B is a unique, fully automated real-time bio-alert system designed to provide early warning of potential biological threats. Its compact and rugged design enables continuous monitoring of airborne agents in the environment, allowing for the detection of suspicious biological materials.

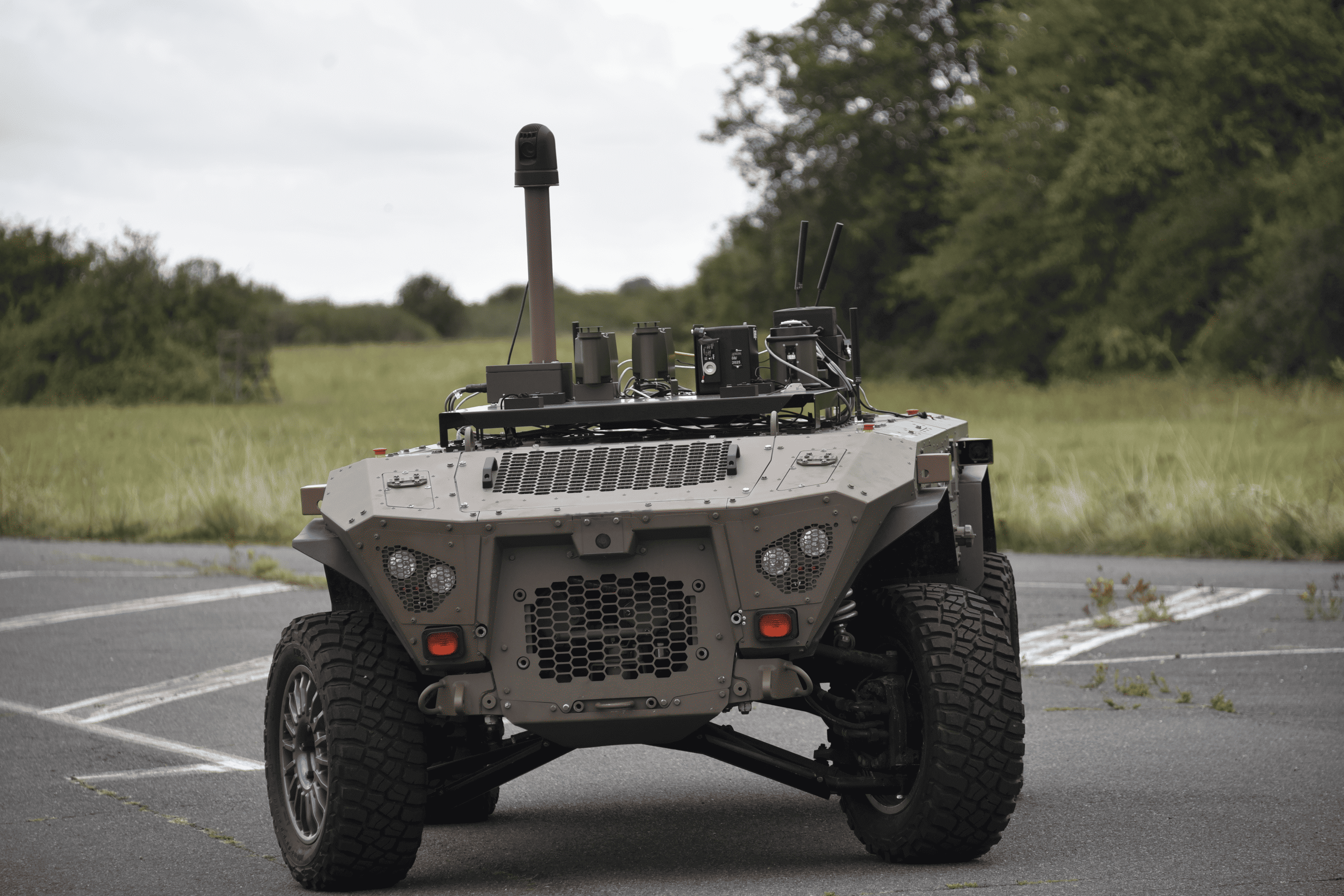

Thanks to its advanced core detection technology, the AP4B is ideal for use either as an independent detector for infrastructure protection or as an integrated solution within vehicles and combat systems. Its machine learning based alarm algorithm enables continuous adaptation to complex variations in both outdoor and indoor environments, ensuring a low-regret response by minimizing false alarms while maintaining high sensitivity to real threats. The system features an open communication protocol, allowing seamless integration into any CBRN defense architecture.

Key features:

• Unlimited BWA (bacteria, viruses, toxins): 100 ACPLA; response time as low as 60 seconds

• Continuous & real-time passive monitoring

• Smart algorithms (Machine Learning based)

• Versatile adaptability across diverse environments

• Universal biological airborne threat detection

• Low-regret response for confident decision-making

• Immune to common interferents & high false alarm reduction

• Seamless integration

• Minimal maintenance requirements

• Quick start-up and response time

• No library / no filters

• External & airtight sampling

• Passive monitoring while in motion or fixed site

• Operates under harsh conditions (dust, humidity, temperature)


Detection

  • Virus
  • Bacteria
  • Spore

Content

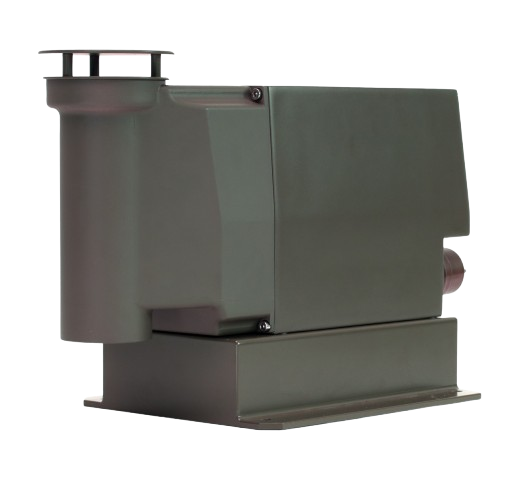

  • The AP4B is a fixed, compact, and rugged system designed for the detection of airborne chemical and biological threats. It can be installed on vehicles, shelters, or fixed infrastructure, and is suitable for both indoor and outdoor environments.

Accessories & services

  • Prepaid maintenance and extended warranty options available upon initial acquisition
  • For training, technical support or maintenance, contact us at contact@proengin.com

Specifications

  • Technology: Flame spectrometry
  • Operating temperature: -32 °C to +50 °C -26 °F to +122 °F
  • Data storage: Internal memory, 1 year loop recording
  • EMI/EMC: CE MIL-STD-461-G
  • Humidity: 1 to 93% HR (non-condensing) IP 65
  • Shocks: MIL-STD-810-H
  • Height: 218.4 mm/ 8.6 inch
  • Length: 342 mm / 13.5 inch
  • Width: 170 mm / 6.7 inch
  • Weight: ~ 4.9 kg (10.8 lbs)
